Ball Valve Set Up

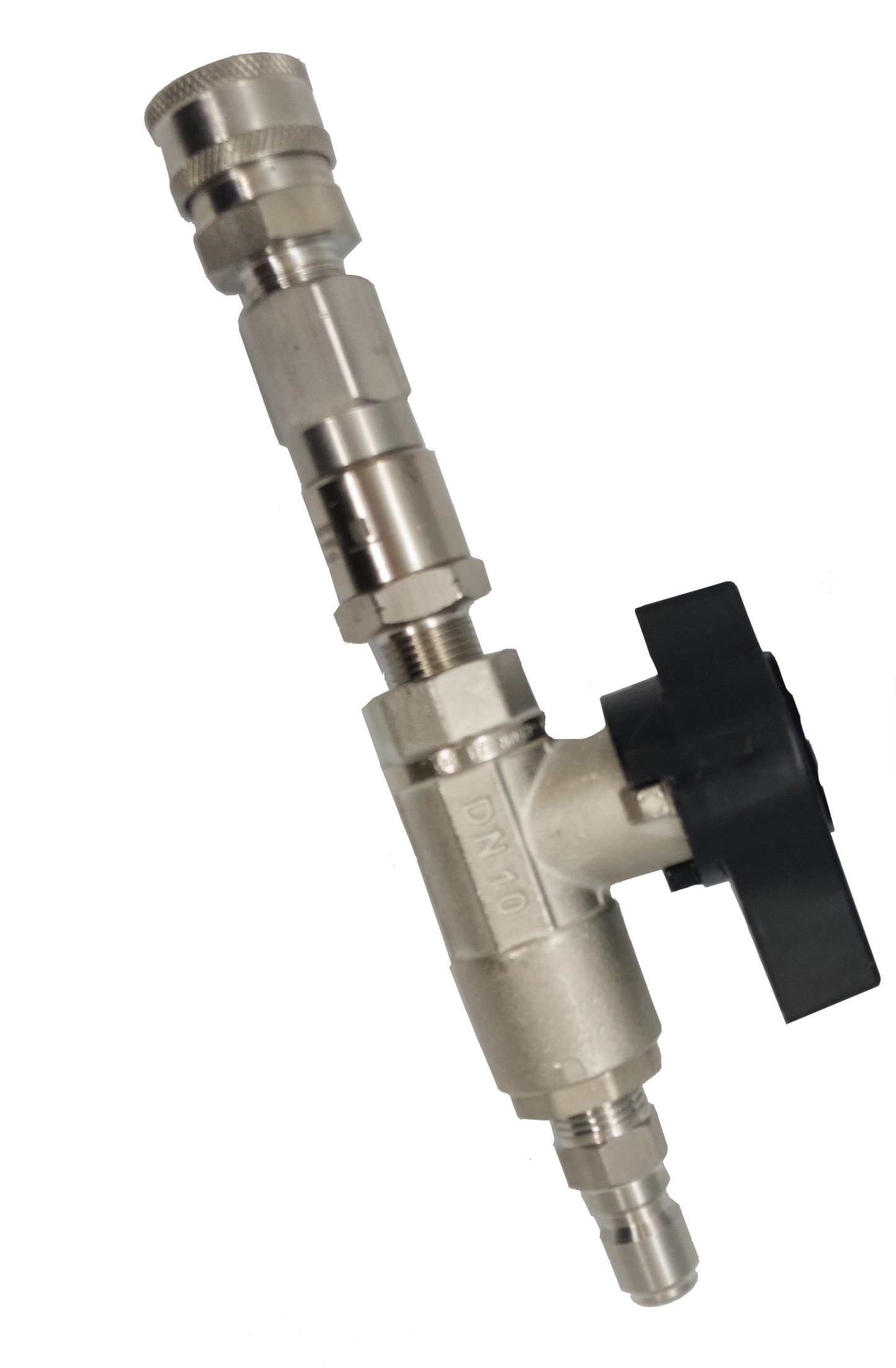

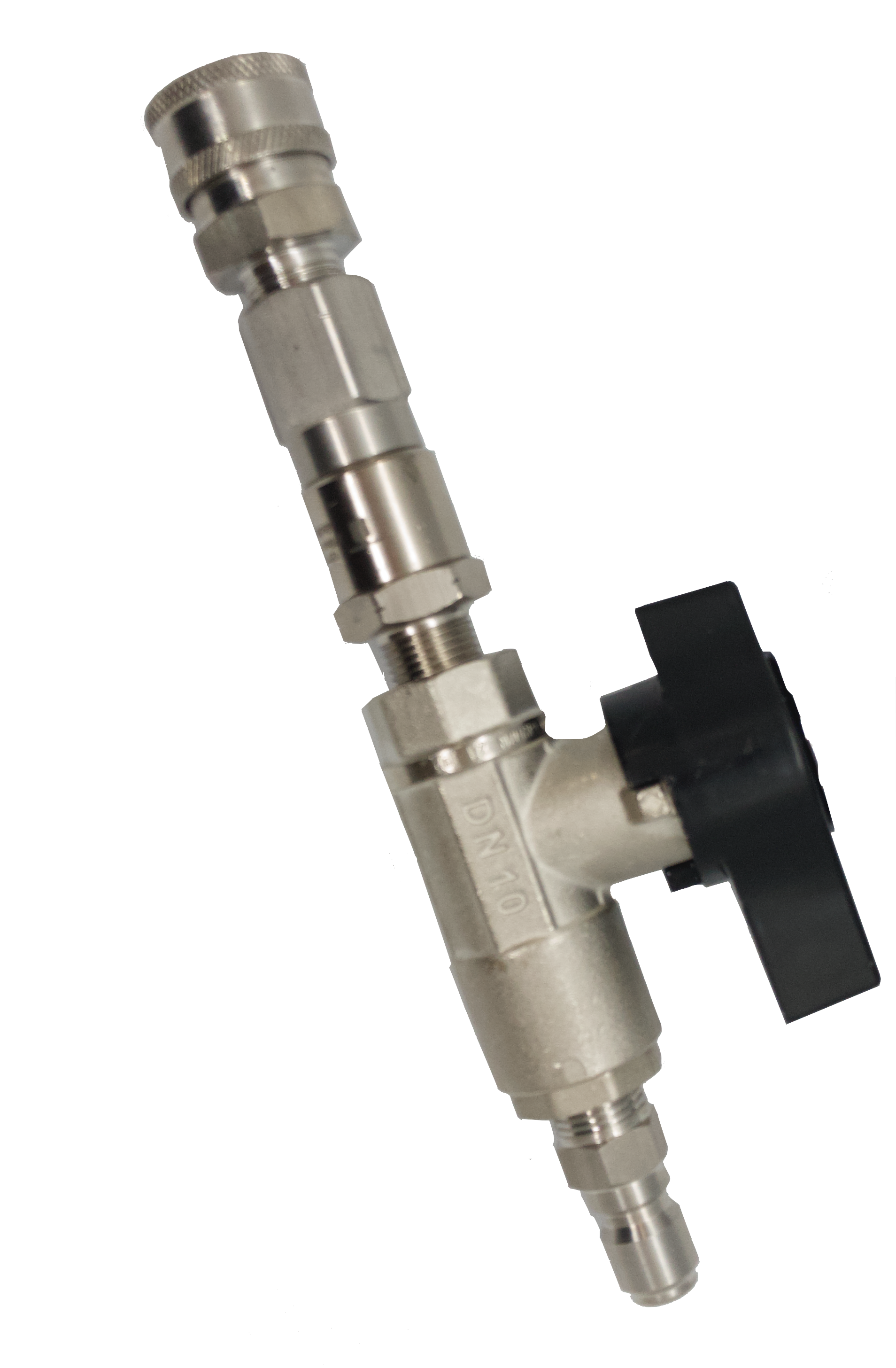

Ball Valve Set Up: the complete ball valve, Mosmatic hose swivel and 3/8" quick connect setup Doug uses on all his hoses. Rated to 3,050 PSI and 300°F. Ready to use or DIY.

This is the complete ball valve setup I use on all my hoses. The ball valve makes it a lot easier to switch from your wand to your surface cleaner or a different gun, and this one is very easy to turn, unlike many others on the market.

It also comes with a Mosmatic hose swivel, which keeps your hose from twisting while you clean and helps relieve fatigue as you move around with a wand. Rounding out the setup are a 3/8" MPT quick connect socket and a 3/8" MPT plug for attaching to your hose.

Choose Your Version

• DIY Kit: All the parts, ready for you to assemble.
• RTU (Ready to Use), Socket In / Plug Out: Comes assembled, with the socket on the inlet side.
• RTU (Ready to Use), Plug In / Socket Out: Comes assembled, with the plug on the inlet side.

Not sure which RTU version? Match the inlet to the quick connect on the end of your pressure hose: if your hose ends in a plug, choose Socket In; if it ends in a socket, choose Plug In.

What's Included

• DN10 Heavy Duty Ball Valve (nickel-plated brass)
• Mosmatic hose swivel
• 3/8" MPT quick connect socket
• 3/8" MPT quick connect plug

DN10 Ball Valve Specifications

• Material: Nickel-plated brass
• Maximum pressure: 3,050 PSI
• Maximum temperature: 300°F
• Handle: Metal
• Seals: Teflon
• Ports: 3/8" FPT

Jetting drains? The Ball Valve Jet Set is set up for our drain cleaning jet hose.

Learn From Doug

Starting a pressure washing business? The Online Pressure Washing School will help you drastically cut your learning curve, and my YouTube channel has free pressure washing tips and tricks. Questions about this product? Use our contact form and I will be glad to help.
