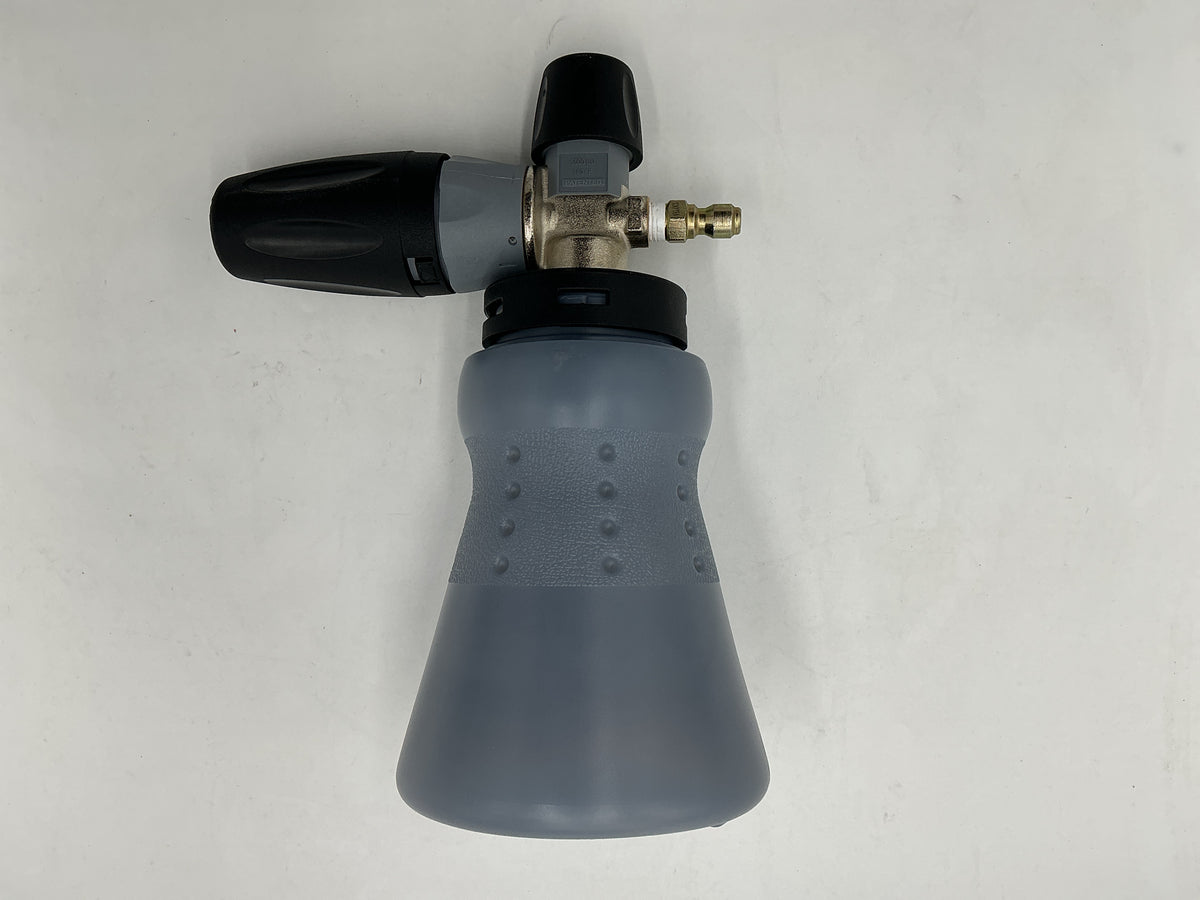

MTM Hydro PF22.2 Professional Foam Cannon Kit

MTM Hydro PF22.2 Professional Foam Cannon Kit

Elevate your auto detailing and commercial equipment washing operations with the Italian-engineered MTM Hydro PF22.2 Foam Cannon. Widely regarded as the industry standard for high-density foam generation, the PF22.2 blends heavy-duty nickel-plated brass construction with patented adjustable spray nozzle technology to throw thick, long-dwelling cling foam onto cars, trucks, house siding, and roofs.

Designed to prevent tipping and chemical spills, the PF22.2 features a calibrated 32 oz wide-mouth standing bottle with a weighted base. Its 2-stage nozzle allows you to rotate the spray pattern seamlessly between horizontal and vertical orientation, while the top chemical injection dial lets you fine-tune soap draw and air mixture on the fly.

Equipped to handle high-pressure machines from 1,100 PSI up to 5,000 PSI, this kit includes both a 1.25mm (3.5) orifice installed for standard electric/gas units and a 1.1mm (3.0) orifice for lower-flow residential pressure washers.

Key Features & Benefits

• Patented Two-Stage Adjustable Nozzle: Switch easily between vertical and horizontal fan patterns while adjusting fan width from narrow stream to wide fan.

• Heavy-Duty Stand-Up Bottle: Calibrated 32 oz wide-mouth bottle features a broad, tip-resistant base and easy-to-grip neck profile.

• Precision Chemical Injection Dial: Top-mounted dial clicks smoothly into place to adjust chemical draw for maximum foam density or liquid conservation.

• Dual Orifice Included: Comes with the 1.25mm (3.5) orifice installed plus a 1.1mm (3.0) orifice to optimize foam performance on lower-GPM pressure washers.

• Single-Cast Italian Brass Body: Italian nickel-plated brass head provides superior chemical resistance and high-pressure durability.

Kit Includes

• (1) MTM Hydro PF22.2 Single-Cast Italian Brass Foam Cannon Body

• (1) 32 oz Calibrated Wide-Mouth Standing Bottle & Adapter

• (1) 1.25mm / 3.5 Orifice (Pre-installed in body)

• (1) 1.1mm / 3.0 Orifice (Included loose for lower flow units)

• (1) 1/4" Male NPT x M22 Adapter

• (1) 1/4" Plated Steel Quick-Connect Plug

• (1) 1/4" x 9" Chemical Suction Tube

Common Applications

• Automotive, RV, Marine & Fleet Detailing

• Residential Siding & Roof Soft Washing

• Commercial Property & Equipment Maintenance

• Agricultural Equipment & Hog Barn Sanitizing

Specifications

• Manufacturer: MTM Hydro / Veloci Performance

• Part Number: 14.7022

• Pressure Range: 1,100 PSI – 5,000 PSI

• Flow Rate: 1.4 GPM – 5.3 GPM

• Max Temperature: 140°F

• Inlet Fitting: 1/4" Quick-Connect Plug / M22

• Origin: Made in Italy

Pro Tip: For lower GPM electric pressure washers (under 2.0 GPM), swap out the pre-installed 1.25mm orifice for the included 1.1mm orifice to dramatically increase foam thickness and dwell time!
