Banjo Cam Lock Female Coupler x Female Thread (Part D)
Banjo Cam Lock Female Coupler x Female Thread (Part D)
Couldn't load pickup availability

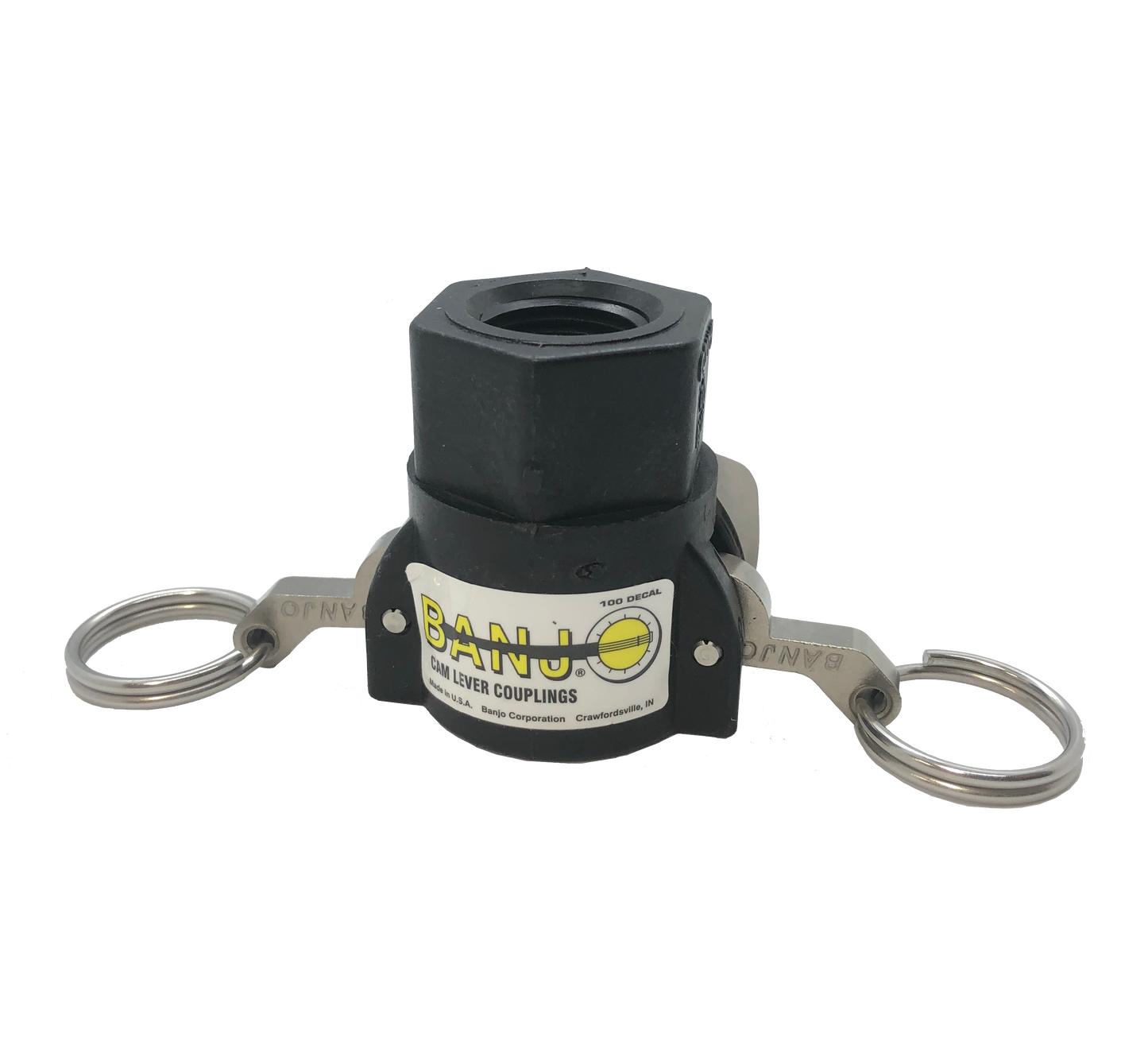

A Banjo poly cam lock female coupler with a female pipe thread (Banjo Part D), in 3/4" x 1/2", 3/4" x 3/4" and 1" x 1".
Thread the female NPT end onto a pipe nipple, pump port or tank fitting, then lock any matching cam lock male adapter into the coupler by pulling the two cam arms down. It connects and disconnects in seconds without tools.
How to Choose
How Banjo sizes these: the cam lock size and the thread size are two different numbers. Banjo's 1/2" and 3/4" fittings both use the same 3/4" cam lock coupler, so the 1/2" and 3/4" versions below connect to the same 3/4" male adapter. Only the 1" fitting uses the larger 1" coupler.
| Cam lock size | Thread | Banjo part number |
|---|---|---|
| 3/4" | 1/2" FPT | 050D |
| 3/4" | 3/4" FPT | 075D |
| 1" | 1" FPT | 100D |
Key Features
- Female coupler x female thread: the coupler side takes a cam lock male adapter; the threaded side takes male pipe thread.
- Tool-free connection: pull the cam arms down to lock, lift them to release.
- Interchangeable: Banjo says its cam lever couplings work with all types of cam lever couplers of the same size.
Specifications
- Brand: Banjo
- Type: Cam lock female coupler x female NPT (Part D)
- Material: Glass-filled polypropylene
- Cam arms, rings and pins: Stainless steel
- Gasket: EPDM
- Max operating pressure: 300 PSI (Banjo rating)
Parts That Go With It
- Banjo Cam Lock Male Adapter Fittings: the male half that locks into this coupler
- Banjo Male Adapter Dust Plug: plugs this coupler when it is not in use
- Water Inlet Mod 3/4" and Water Inlet Mod 1 Inch
- Banjo Short Poly Nipple
Doug's Note
We use this coupler most often in our water inlet mod kits, on the water inlet of the pressure washer, but it has plenty of other uses.
Learn From Doug
Starting a pressure washing business? The Online Pressure Washing School will help you drastically cut your learning curve, and my YouTube channel has free pressure washing tips and tricks. Questions about this product? Use our contact form and I will be glad to help.
